v Introduction

u FL2000 is the simple design lock without hand lever. Different unlock style and
function also could meet the security needs. Smaller size, easy to operate and

high quality are the key points of this fingerprint locks,safety and convenient ar

-e the special features.

v Feature

u Unlock way: Fingerprint/ Code/ Mechanical key

u Simple,unsophisticated but high-tech design

u Fingerprint Optical sensor

u Slide cover to wake up&protect device

u Easy for lock installation

u 4AA battery;Low battery /tamper/pseudo/door not close well alarm

u With normally open function

u With emergency external power&Mechnical Key

u Data record not be affected by interruption of power supply

u Handset: Device:Access control&events tracking/management etc.(Optional)

u Handlevel (Optional)

v Specification

u 100FP Capacity;Password:5GP,9 digits/GP

u Door thickness:35-100mm (1.4''- 4'')

u Power Supply:DC 6V

u Operation Tem:-20°C~55°C

u Operation Hum:20%-95%

u Size: 221X76X40mm

u N.W: 2.75KG

u Color:Silver,Bronze,Copper-colored

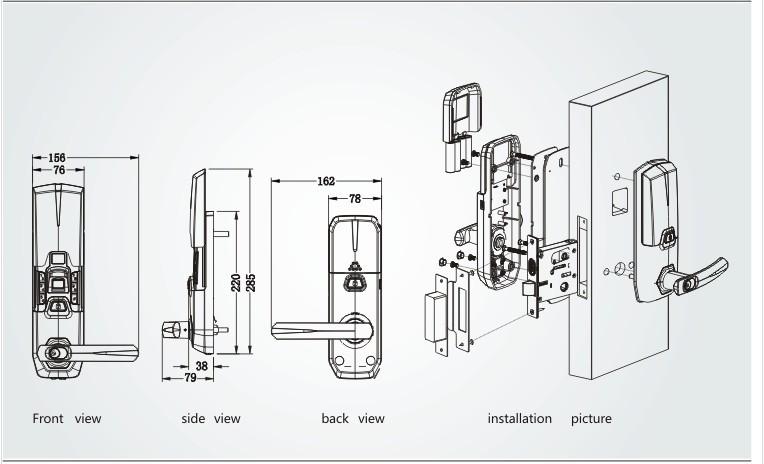

v Picture & Installation Picture
