v Introduction

u Fingerprints are the most commonly used forensic evidence worldwide with many

advances in the industry year after year, fingerprint lock is a high tech biometric

Prodcut roduct serves people for their security needs; it will offer you a safe and

peaceful life, also to prevent you from worry about the security problems. Our F

series fingerprint locks are fully meet your requirements and we also provide the

best services for you

v Feature

u Unlock way:  Fingerprint/ Code/ Mechanical key

u Fingerprint Optical sensor

u Slide cover to wake up&protect device

u Double lock by lifting the level

u 8AA battery;Low battery /tamper/pseudo/door not close well alarm

u High security lock mortise with multi-bolts

u With emergency external power&Mechnical Key

u Data record not be affected by interruption of power supply

u Top & bottom bolt function; (Optional for Steel Security Door )

v Specification

u 100FP Capacity;Password:10GP,8 digits/GP

u Door thickness:40-100mm (1.6''- 4'')

u Emergency Power Supply:DC9V

u Operation Tem:-20°C~55°C

u Operation Hum:20%-95%

u Size: 340X154X81mm

u N.W: 4.45KG

u Color:Golden,Bronze,Copper colored

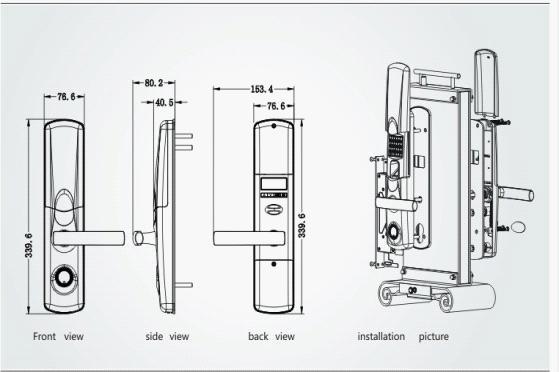

v Picture & Installation Picture
