l Introduction

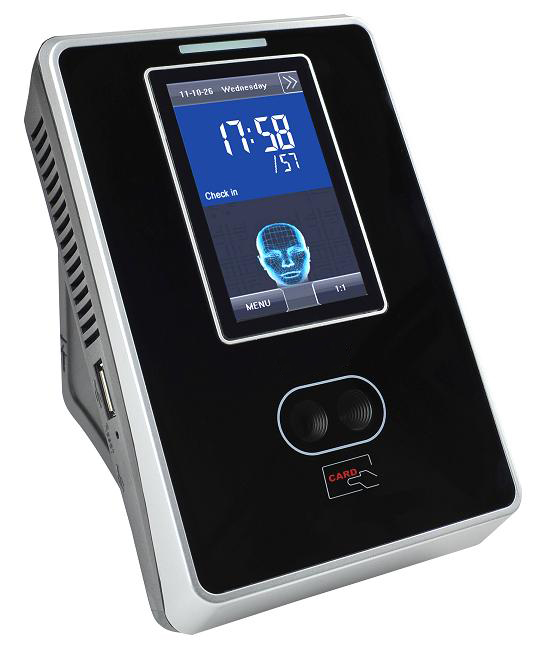

◆  VF380 is a face identification T&A terminal with simple access con
      trolfunctions,which can connect with 3rd party electric lock,door se
      nsor and exit button.Face,Pin and RFID recognition modes are av
      ailable,VF380 captures the relative position,size and shapes of the
      user's eyes,nose,cheekbones and jaw features to ensure accuracy
      of the identification.All the setting can be easily done on 3-inch TFT
      touch screen,with a VF380 you can manage your workforce and acc
      ess control.

l Features

◆  Elegant ergonomic design.

◆  Face,RFID,PIN identification mode.

◆  TCP/IP communication and USB-Host.

◆  3.0inch TFT touch screen,T9 Input,9Digits User ID.

◆  Infra-red optical system enables user identification in poor lit environments.

◆  3rd party electric lock,door sensor and exit button.

l Specification

Image sensor:Special stereo Dual sensor

Display:3 inch Touch Screen

Face Capacity:800(1:N)  1200(Optional)

ID Card Capacity: 10,000

Communication:TCP/IP,USB-Host

Standard Function:

ID card,Automatic Status Switch,Self-service query,Work code,T9 input,9 Digit User ID,DLST,Scheduled Bell.

3rd party Electric Lock,Door sensor,Exit button and short message.
Optional Function:Mifare Card

Power Supply: 12V/1.5A

Verification Speed:≤1S

Operation Temp:0°-45°C

Environment Humidity:20%~80%

Size:104.70 *160*36mm(L*W*H)

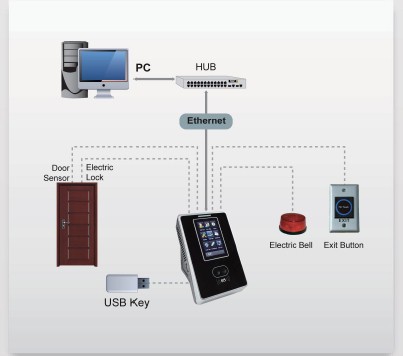

l Configure
