Main Function |

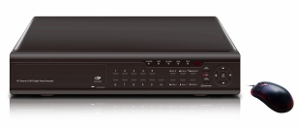

TA1116FA |
|
Operation System S |
Embedded Linux OS |
|
Video Compression |
Main profile H.264 |
|
Video Input |
16channel BNC |
|
Video Output |
1channel BNC,1channel SPOT,1channel VGA(1280*1024),1 channel HDMI(1920*1080P) |
|
Audio Input/Output |
16 channels RCA/1channel RCA |
|
Display Picture Division |
1/4/8/16CH |
|
Multiplex operation |
Live,Record,Network,,Playback,Backup |
|
Display Resolution |
PAL:D1(704*576),NTSC:D1（704*480） |
|
Recording Modes |
Timer, Manual, Motion Detection, Remote |
|
Total Recording Resource |
PAL:D1@100fps,HD1@200fps,CIF@400fps
NTSC:D1@120fps,HD1@240fps,CIFQ@480fps |
|
Recording Quality |
Single channel adjustable |
|
Recording Resolution |
PAL: D1(704*576),HD1(704*288), CIF(352*288)
NTSC: D1(704*480),HD1(704*240), CIF(352*240) |
|
Playback |
1ch/4ch/8ch/16ch simultaneously(playback channel option) |
|
Backup |
USB Flash disk ,Movable hard disk,DVD- Writer ,Network |
|
Alarm Input/Output |
16 channels input /4 channels output |
|
Alarm- action |
Support |
|
SPOT Alarm Pop-up |
Support |
|
PTZ |
Supports PTZ preset ,Cruise and Control PTZ via PC |
|
PTZ protocol |
PELCO-D,PELCO-P |
|
HDD |
2 SATA(one per 2TB storage) |
|
HDD storage remark |
Support |
|
Network port and Protocol |
1 RJ-45 10/100M，support TCP/IP、PPPOE、DHCP、DNS、DDNS、UPNP、NTP |
|
IE Browser |
Support |
|
Recording file Play |
Special player |
|
Client Software |
Support |
|
CMS |
Support(One software for at most 50 DVR ) |
|
dual-Stream |
Support (Main and secondary interchange) |
|
Multi-language OSD |
Support |
|
SDK Package |
Available |
|
Mouse port |
USB2.0 |
|
Backup port |
USB2.0 |
|
Remote Controller |
Support |
|
User Authority |
Multi-level user authority distribution |
|
System Date |
Support Format Swift , Summer time |
|
Input Method |
Support |
|
Power Supply |
12V/5A |
|
Operating Temperature |
0℃-50℃ |
|
Operating Humidity |
10%－90% |
|
Size |
430*345*66mm(L*D*H) |
