Description：
Introduction:

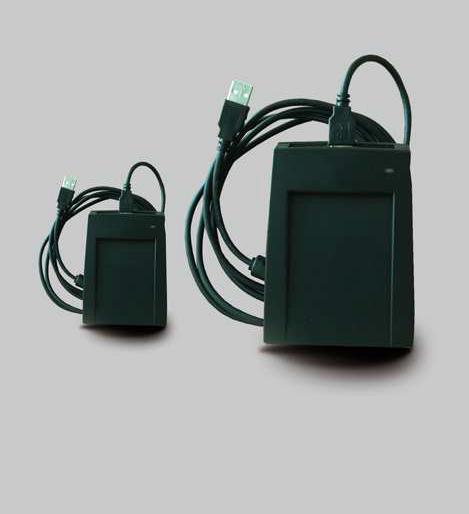

CR10E: 125KHz Proximity card reader with USB Interface
CR10M: 13.56MHZ Mifare card reader with USB Interface
Features:
．125KHz Proximity /13.56MHz Mifare Card Reader
．Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
．Read card number only
．USB interface
．Power by USB
．LED indicator and buzzer feedback
．Avoid manual input mistake
．No need driver,compatible with Windows 98,2000,XP,Vista,7
Specifications:
|
Model |
CR10E |
CR10M |
|
Read Range |
Up to 10CM |
Up to 5CM |
|
Power / Current |
USB5V DC/ Max.100mA |
|
Input Port |
2ea (External LED Control, External Buzzer Control) |
|
LED Indicator |
2 Color LED Indicators(Red and Green) |
|
Beeper |
Yes |
|
Operating Temperature |
-10° to +70°C |
|
Operating Humidity |
10% to 90% relative humidity non-condensing |
|
Color |
Black |
|
Material |
ABS+PC with texture |
|
Dimension(W x H x T)mm |
140*100*30 |
|
Weight |
120g | |
