Name： KR102E/KR102M<< Return to directory >>

Description：

Introduction:

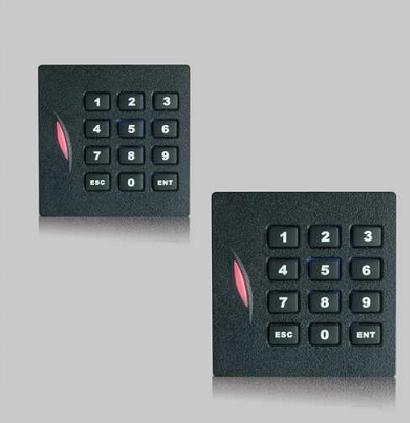

KR102E: 125KHz Proximity card reader with keypad

KR102M: 13.56MHz Mifare card reader with keypad

Features:

．125KHz Proximity /13.56MHz mifare Card Reader or PIN
．Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
．Output format
．Card: 26/34bit Wiegand (default)
．PIN: 8 bit for PIN output format
．External LED Control
．External Buzzer Control
．Indoor / Outdoor Operation
．Reverse Polarity Protection

Specifications:

Model	KR102E	KR102M
Read Range	Up to 10CM	Up to 5CM
Reading Time (Card)	≤300ms
Power / Current	DC 6-14V / Max.70mA
Input Port	2ea (External LED Control, External Buzzer Control)
Card Output Format	26bit Wiegand (default)
PIN Output Format	8 bit
LED Indicator	2 Color LED Indicators(Red and Green)
Beeper	Yes
Operating Temperature	-20° to +65°C
Operating Humidity	10% to 90% relative humidity non-condensing
Color	Black
Material	ABS+PC with texture
Dimension(W x H x T)mm	868616.3
Weight	120g
Index of Protection	IP64
