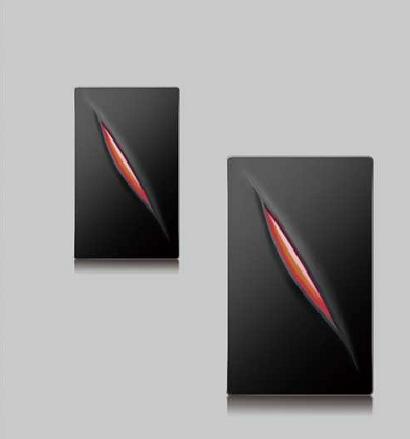

．125KHz Proximity /13.56MHz mifare Card Reader ．Read Range: Up to 10CM(125KHz)/5CM(13.56MHz) ．26/34bit Wiegand (default) ．Easy to install on Metal Door Frame or Mullion ．External LED Control ．External Buzzer Control ．Indoor / Outdoor Operation ．Solid Epoxy Potted ．Waterproof IP65 ．Reverse Polarity Protection
Specifications:
Model
KR101E
KR101M
Read Range
Up to 10CM
Up to 5CM
Reading Time (Card)
≤300ms
Power / Current
DC 6-14V / Max.70mA
Input Port
2ea (External LED Control, External Buzzer Control)
Output Format
26bit Wiegand (default)
LED Indicator
2 Color LED Indicators(Red and Green)
Beeper
Yes
Operating Temperature
-20° to +65°C
Operating Humidity
10% to 90% relative humidity non-condensing
Color
Black
Material
ABS+PC with texture
Dimension(W x H x T)mm
77.5*42.8*16.5
Weight
50g
Index of Protection
IP65
