l Introduction

◆  One touch,that's all it takes for acccess control with our ANC09 biometric
reader that offer the flexibility to be installed standalone or with any third      panel that supports 26bit wiegand.Fast,reliable performance combined with affor
dability gives our readers the competitive edge.Each reader has the capacity to   store up to 3,000 fingerprint template and 100,000 transactions,Enrolling users   is fast&easy since it has user-friendly keypad and display

l Features:

◆  Fingerprint reader with durable and highly accurate optical sensor.

◆ 1touch,1 second employee recognition

◆ Support 50 time zones,5 groups and unlock combinations

◆ Tamper-proofs switch and alarm outputs

◆ Request-to-exit and alarm contacts

◆ Operates stand-alone without a computer

◆ Real-time 1 touch data export to 3rd party hosted&non-hosted application

◆ Audio visual indications for acceptance&rejection of valid and invalid FP

◆ SDK available for OEM and customers and software developers

l Specification

Sensor    500DPI Optical sensor

Fingerprint Capacity   3,000 Templates

Transaction Capacity  10,000 Transactions

Algorithm  Ver 10.0

Communication  TCP/IP,RS232/485,USB-host

Display   LCD with 2 line display.
Access Control Interface for
3rd Party Electric lock,door sensor,exit button,alarm,door bell,anti-pass back
Wiegand Signal  Output&Input
Standard Function

Workcode,SMS,DLST,Webserver,Anti-pass back

Optional Function

RFID/Mifare/HID card,Relay-bell,Scheduled-bell,Webserver,9 user digits,printer.
Self-service query,Automatic Status Switch,External fingerprint sensor

Power Supply    12VDC,3A

Operation Temp  0°-45°C

Environment Humidity  20%~80%

Dimension   212.3*95.8*53.5mm

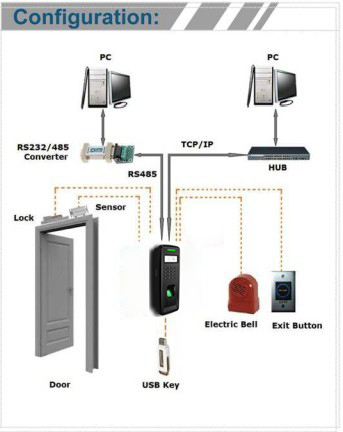

l Configure
