Features:

．Fingerprint reader with durable and highly accurate optical sensor

．1 touch a-second user recognition

．Stores 1500 templates 10000 cards and 30000 transactions

．Reads Fingerprint and/or Card

．Optional integrated smart card reader

．Built-in Serial and Ethernet ports

．Tamper-proofs switch and alarm outputs

．Request-to-exit and alarm contacts

．Real-time 1-touch data export 3rd party hosted & non-hosted applications

．Audio-Visual indications for acceptance and rejection of valid/invalid fingers

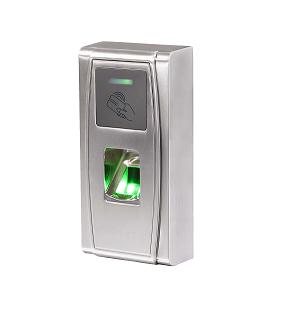

Name： MA300<< Return to directory >>

Description：

Specifications:

Fingerprint Capacity	1500 templates
ID card Capacity	10,000
Transaction Capacity	100,000
Hardware Platform	ZEM710
Sensor	Optical Sensor
Algorithm Version	Finger VX10.0
Communication	RS485, TCP/IP, USB-host
Access Control Interface for	3^rd party electric lock, door sensor, exit button, alarm
Wiegand Signal	Input & Output
Stardard Access Control Function	Time Zone, Group, Multi-identification, Duress mode, Anti-passback
Optional Functions	Mifare, external USB keypad
Display	N/A
Power Supply	12V DC
Operating Temperature	-10 ℃- 60 ℃
Operating Humidity	10%-90%
Index of Protection	IP65
