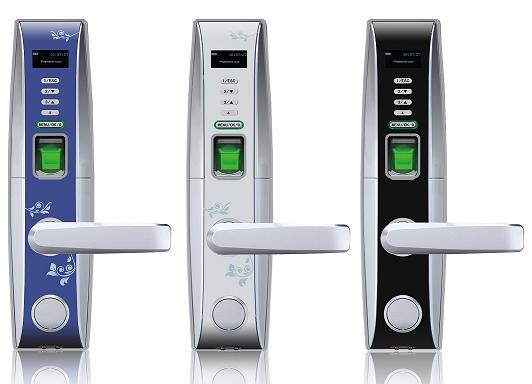

FL4000
NameFL4000<< Return to directory >>
Description

Features:

.MULTI-FACTOR IDENTIFICATION METHODS

Supports four identification mode which includes - fingerprint, password, RFID card and mechanical key or any combination.



.RUGGED SENSOR TECHNOLOGY

Non-coating optical fingerprint sensor and cutting edge fingerprint matching technology.



.VERSATILE APPLICATION AND RELIABLE MECHANISM

Strong stainless steel bar latch - suitable both for the main entrances as well as other doors.

Keep visitor mode in Unlock-status if it is activated.



.ROBUST MECHANICAL STRUCTURE

Pure stainless steel mechanical rotating structure with nanotechnology, which makes it last for many years under normal usage.



.EASY INSTALLATION AND OPERATION

No wiring required – Standalone installation. Data transfer to and from PC can be done using USB flash disk. User registration and various settings can be done directly at the lock using OLED display.



.EXTENDED BATTERY LIFETIME

Lock is powered by four standard alkaline 1.5 V batteries which can last up to 5,000 unlocking activities. The OLED display will show the status of the batteries power level.

Specifications:

Model

FL4000

Material

Zinc Alloy

Front Panel Colors

Black/Blue/White/Polishing

Display

OLED

Fingerprint Sensor

 Optical Sensor

Resolution

500 dpi

Storage



• Fingerprint templates

500

• Password

100

• Event capacity

30,000

ENROLLMENT & VERIFICATION



• Methods

Fingerprint (1:1, 1:N), Password & Card

• FAR

< 0.0001%

• FRR

< 1%

• Lenght of password

6~10 digit

Card  Technology



• Proximity: 125KHz

optional

• Mifare: 13.56MHz

optional

Communication Model



• Method

USB flash disk

Operating Environment



• Temperature

0°C ~ 45°C

• Humidity

20 %~ 80%

• Power input

4 x 1.5V AA Battery

• Low battery warning voltage

< 4.8V

Backup Unlock Mechanism

Emergency battery & Mechanical key

Product Dimension (L x W x H)

315*78*38mm
