Feature
• Powerful 10x optical zoom
• High resolution@700TVL/600TVL
• WDR(DWDR)Day/Night(ICR)DNR(2D&3D)
Auto irisAuto focusAWBAGCBLC
• Max300°/s pan speed360°continuous pan
rotation
• Up to 128 presets4 auto scan4 tour4 pattern
• Power up ActionIdle MotionTime Task support
• Support 4/2ch alarm in/out(Optional)
• -10~50℃DC12V
• IR LEDS up to 120mconstant currency control
low consumption but longer life for IR lights

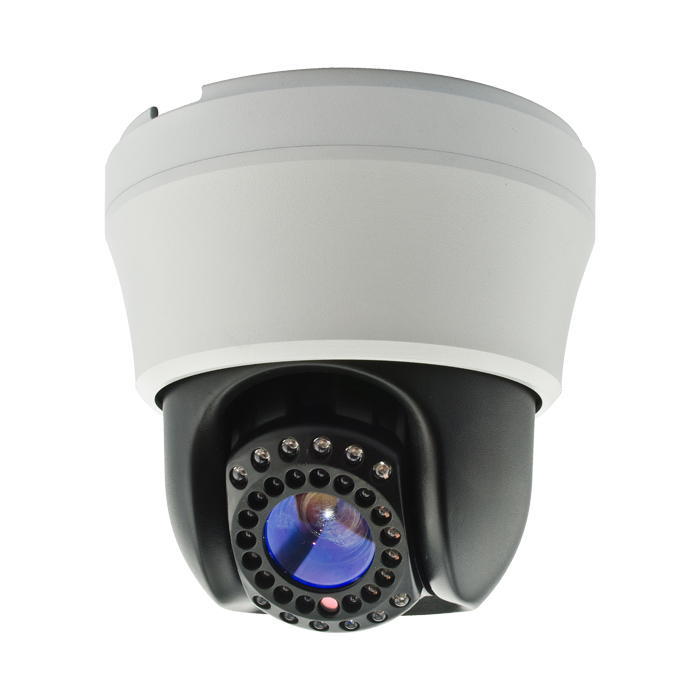

Name： TA-ZP42R<< Return to directory >>

Description：

Specification：

Manual speed	Pan（0.1°～300°/s）
Manual speed	Tilt（0.1°～180°/s）
Power supply	DC 12V
Rotation	Pan 360°continuously, tilt 0～90° with auto-flip
Speed Proportion	human-oriented focal length/ speed adaptation
Preset	128 preset, title can be edited
Auto-flip	Tilt 90°, with auto-flip 180°
Scan	355°programmable, 4 scan
Pattern	4 patterns, and each record time is not less than 180s
Tour	4 tour, and speed & park time of presets can be set
RTC	Real clock function,can set auto function
Display zone	8 programmable zones with editable title
Temperature indicating	Low temperature protection function
Romote controlling	RS485
Baud rate (RS485)	2400／4800／9600/19200 bps
ID range	1-254
Power consumption	9W
Temperature	-10℃～+50℃
Installation	ceiling mount
Net weight	1.3Kg

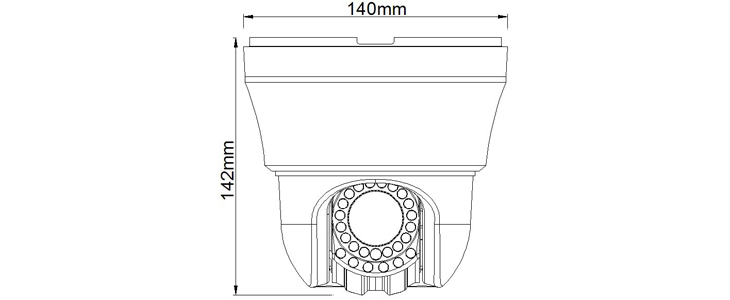

Dimension:
