l Introduction

◆  ANC705,a professional access control tool offers you the new experience
with the innovation of combining the fingerprint verification and an optional
functionwith RFID card system.It also provides security control alarm system
to prevent any unauthorized dismantle of the reader.With the features on the
combination of fingerprint and card system in ANC705,any unauthorized entries
or unwanted intruders can now be avoided to enhance the highest protection for
your organization andpremised.

l Features:

◆  Fingerprint reader with durable and highly accurate optical sensor.

◆ 1touch,1 second employee recognition

◆ support 50 time zones,5 groups and unlock combinations

◆ Tamper-proofs switch and alarm outputs

◆ Request-to-exit and alarm contacts

◆ Operates stand-alone without a computer

◆ Real-time 1 touch data export to 3rd party hosted&non-hosted application

◆ Audio visual indications for acceptance&rejection of valid&invalid
   fingerprints

◆ SDK available for OEM and customers and software developers

l Specification

Sensor    500DPI Optical sensor   Silicon(Upek TCS1)  (Optional)

Fingerprint Capacity    2,2000 Templates

Transaction Capacity  10,000 Transactions
Algorithm  Ver 10.0

Communication  TCP/IP,RS232/485,USB-host

Display   LCD with 2 line display.
Keypad&Button    16key numeric&&function keypad

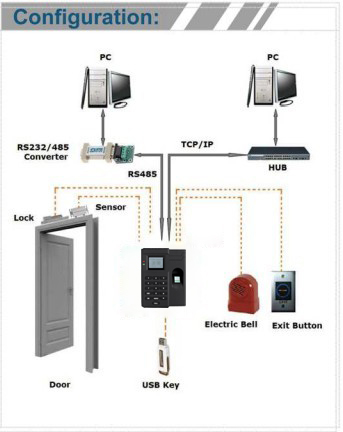

Access Control Interface for
3rd Party Electric lock,door sensor,exit button,alarm,door bell,anti-pass back
Wiegand Signal  Output&Input
Standard Function

Workcode,SMS,DLST,Webserver,Anti-pass back

Optional Function

RFID/Mifare/HID card,Relay-bell,Scheduled-bell,Webserver,9 user digits,printer.
Self-service query,Automatic Status Switch,External fingerprint sensor

Power Supply    12VDC,3A

Operation Temp  0°-45°C

Environment Humidity  20%~80%

Dimension   159*136*40mm
